Creating In-App Templates

In-app templates are message blueprints that you can reuse across multiple in-app message campaigns, which users can view as they're using your mobile apps or websites. They can contain text, buttons, links, and images, and you can customize them with user profile and event data, data feeds, and Catalog data.

This article describes how to create an in-app message template, configure its settings, design its content, preview it, send test messages, and use it with a campaign.

# In this article

# Permissions

To create and edit templates, you'll need the Create and Manage Templates permission.

# Setting up your mobile apps

To send in-app messages, first add your mobile apps to Iterable, on the Settings > Apps and websites page.

Iterable's iOS SDK, Android SDK, and React Native SDK include functionality to fetch and display in-app messages in your apps.

# Creating a new in-app template

To create a template that you can reuse for one or many in-app message campaigns:

1. Go to Content > Templates.

2. Click New template > In-App.

3. Give your template a name that will make it easy to find when you (or your teammates) are setting up campaigns or journeys. This field has a 150-character limit.

4. Click Create template.



There are other ways to create templates, too: as you're setting up a new campaign, and by using Iterable's API. For more info, read Working with Templates.

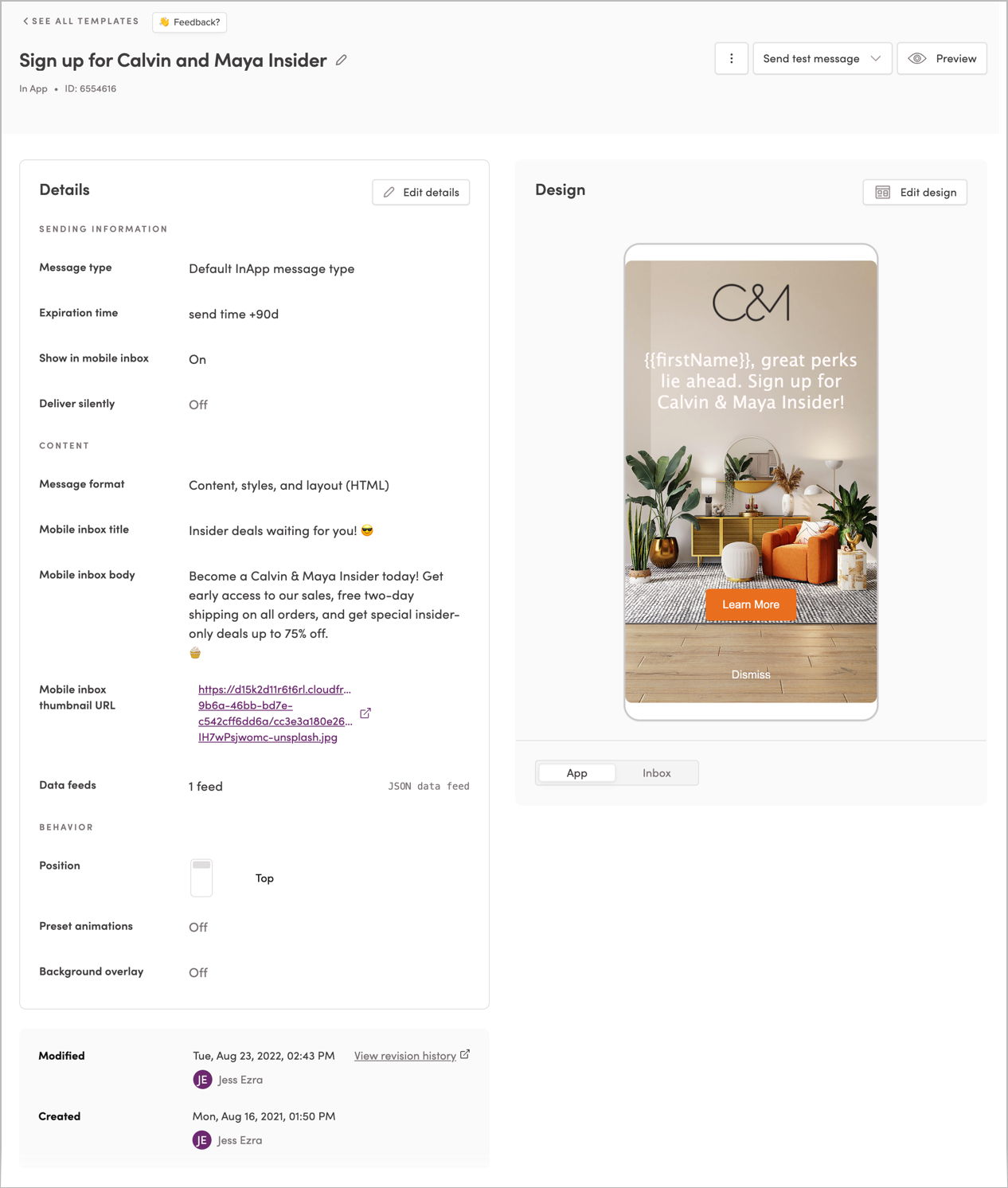

# Configuring the details of an in-app message template

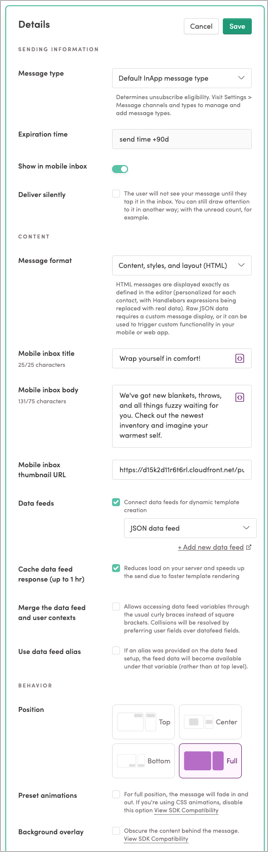

To update in-app message template details such as message type, expiration time, mobile inbox options, position, etc., open it up and configure the options in the Details area.

To update these options, click Edit details. As you make changes, the template preview (on the right side of the page) will update. When you're done editing, click Save or Cancel.

Here are the details you can update:

# Message type

The message category to associate with campaigns based on this template. This affects who will receive those campaigns. Read Message Channels and Message Types.

# Expiration time

The last possible time that messages based on this template can be displayed or listed in the app's mobile inbox (if applicable).

By default, an in-app message expires 90 days after Iterable sends the campaign. That is, if a mobile app doesn't retrieve the message in 90 days (maybe because the user never opens the app), the user won't see it.

To specify a custom expiration time, use the Expiration time field. Use this calendar to set a specific or relative expiration time. An expiration date can be up to one year in the future.

To set a relative expiration time, use the text input near the calendar control to enter an expiration time relative to the campaign send time. Use this syntax:

• y - years
• M - months
• w - weeks
• h - hours
• m - minutes
• s - seconds

For example:

• send time +3h+14m+7d - 3 hours, 14 minutes, 7 days after send time
• send time +1M+1w - 1 month and 1 week after send time
• send time /d+3d - 3 days after midnight on the day of send time

Keep in mind: You can change an in-app campaign's expiration time, but Iterable doesn't update the expiration time for users who have already been sent the campaign. If you need to change an in-app campaign's expiration time, you can recall the campaign and send it again with the new expiration time.

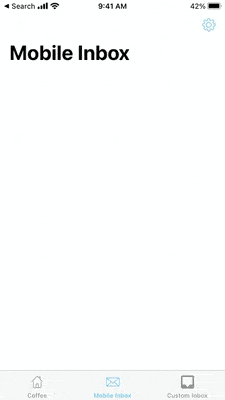

# Show in mobile inbox

Makes this message available in your app's mobile inbox, if it has one.

# Deliver silently

Available when you select Show in mobile inbox. Causes this message to appear only in your app's mobile inbox. It won't appear to the user unless they tap on it in the inbox to view it.

# Message format

The type of data to send with this message:

• Content, styles, and layout — Only send HTML content, as defined in the template editor.

• Raw data (JSON) — Only send the JSON data entered in the Raw JSON input.

• Everything: content, styles, layout, and raw data (HTML & JSON) — Send HTML content, and any JSON data entered in the Raw JSON input.

# Mobile inbox title

Available when you select Show in mobile inbox. The title of the message that appears in your app's mobile inbox.

This field accepts snippets, Handlebars, and emojis. Text beyond 25 characters will be truncated in the mobile inbox.

# Mobile inbox body

Available when you select Show in mobile inbox. The message body that appears in your app's mobile inbox, as it's displayed in the list of available messages.

This field accepts snippets, Handlebars, and emojis. Text beyond 75 characters will be truncated in the mobile inbox.

# Mobile inbox thumbnail URL

Available when you select Show in mobile inbox. The URL of an image to display in the mobile inbox for this message.

# Data feeds

Data feeds allow you to fetch user-specific data from external URLs (your own or third-party) and use it to personalize your messages. For example, a restaurant chain might use a data feed to fetch information about locations close to the user, and then highlight them in their messages. To tell the data feed which user you need information for, you can pass query parameters in the data feed URL.

To enable data feeds, check Data feeds. Then, select an existing data feed from the dropdown or click Add a new data feed.

For more information about data feeds, related configuration options, and how to use them, read Personalizing Templates with Data Feeds.

# Position

Specifies the position of the in-app message on the mobile device:

• Top — Displays the in-app message at the top of the screen.
• Bottom — Displays the in-app message at the bottom of the screen.
• Center — Displays the in-app message in the center of the screen.
• Full — Displays the in-app message at the top of the screen, extending its background to all edges.

# Preset animations

Default animations to use when showing and hiding in-app messages.

When an incoming in-app message has this option enabled, your apps display and hide it using default animations based on the message's Position:

• Top - The in-app message slides in and out from the top edge of the screen.
• Bottom - The in-app message slides in and out from the bottom edge of the screen.
• Center - The in-app message fades in and out.
• Full - The in-app message fades in and out.

For example, here's the animation for the Top position:

(This example in-app message has a cream-colored background, which causes the color change you see at the end of the animation.)

Notes about preset animations:

• To preview an animation, click the play button near the device preview.

• On iOS, the sliding animations move through the safe area, but they don't obstruct it when complete.

• On Android, the animation that slides in from the top moves under the status bar. After it completes, the status bar will overlap the in-app message a bit — be sure to leave some extra space near the top of the message and to test as necessary.

• For messages with this option disabled, different versions of Iterable's SDKs show and hide the messages in different ways:

  • Older versions of the iOS SDK (6.2.13 and lower) slide messages in from the bottom. Older versions of the Android SDK (3.2.7 and lower) do not animate them.

  • Newer versions of the iOS SDK (6.2.14 and higher) and Android SDK (3.2.8 and higher) will not animate the message's appearance or disappearance.

# Background overlay

A colored, semi-transparent background to display behind an in-app message. The background extends to the edges of the screen, including the status bar.

Configure a background overlay with these values:

• Hex Color - The background's RGB color, specified as a hexadecimal value. For example, enter FF0000 for red, 00FF00 for green, or 0000FF for blue. You can also use RGB triplets such as FF0 (yellow).

• Opacity - The opacity to use for the background. Enter a value between 0 and 100 (inclusive).

The in-app preview updates as you change these values.

# Raw data (JSON)

Visible when Message format is set to Everything: content, styles, layout, and raw data (HTML & JSON). JSON data to send to your mobile app as part of the in-app message. Use this data to drive a custom message display or trigger functionality in your app.

For example, you could use JSON to insert a custom native modal or inline message:

{
  "title" : "We appreciate your business!",
  "body" : "Thanks for being a loyal customer. Here's 20% off your next purchase as a thanks!",
  "button_text" : "Save",
  "button_link" : "myapp://loyalty_promo"
}

Some other things you can do with this JSON data:

• Trigger a custom behaviors when the message is opened.
• Specify coupon codes.
• Describe link and attribution information.
• Indicate a notification type, and have your app behave differently depending on the type received.

You can customize raw JSON with Handlebars expressions, which output different content for different users. To verify that your raw JSON works as expected, click Preview and scroll to the bottom of the page. As you load data for different users, this preview updates. For more information, read Previewing a JSON Payload.

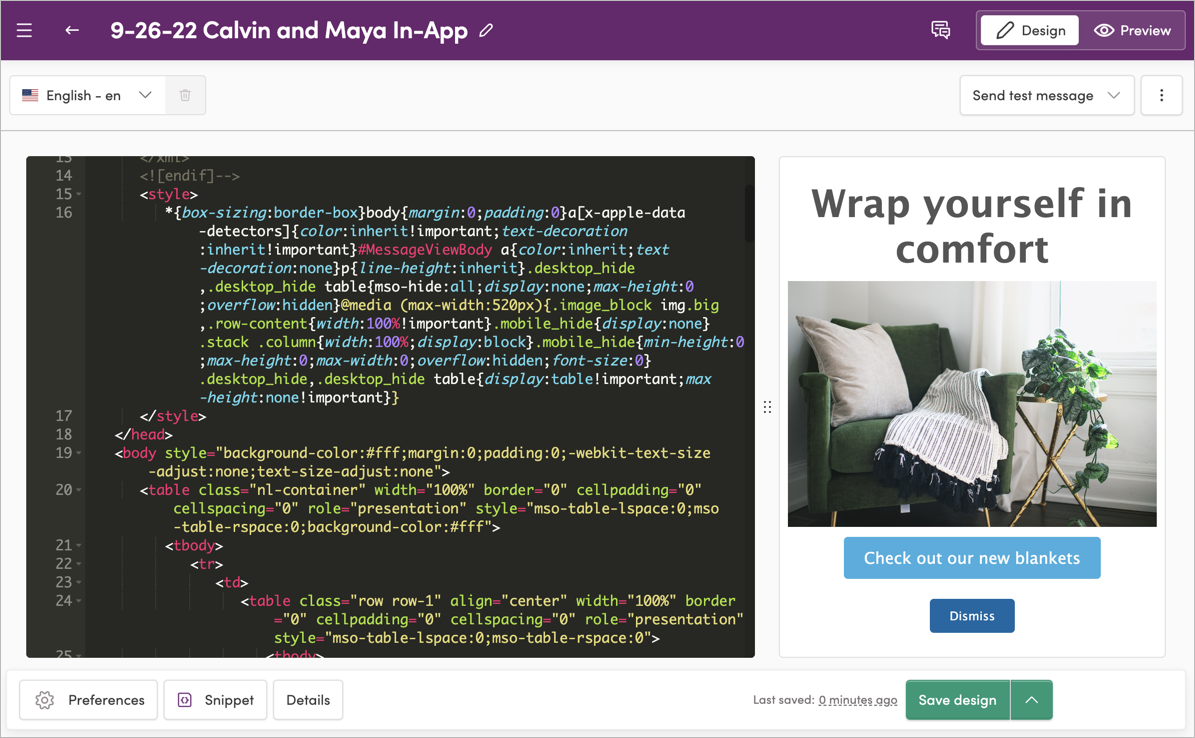

# Designing the content of an in-app message template

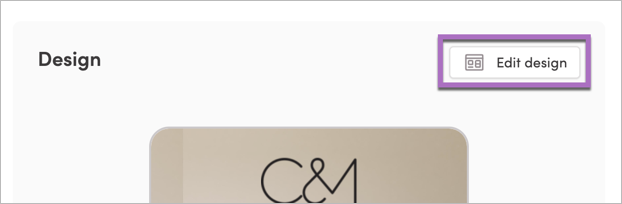

To edit your template's design and content, open it up and click Edit design.

In design mode, you can:

• Choose a template editor to edit your template's content. If you're using the WYSIWYG or Side by Side editor, you can switch between the two in Preferences.

  Unsure which template editor is right for you? Check out Template Editors Overview.

  TIP

  We recommend personalizing your templates with Handlebars, data feeds, and Catalog data.

• Insert a snippet into your template's content by clicking the Snippet button. For more info about snippets, read Adding a Snippet to a Template.

• Create and insert an SMS Smart Opt-In link with disclaimer text. For more information, read SMS Smart Opt-In.

• Manage custom fonts, and whether or not your template should convert CSS to inline styles, click Preferences.

Here are other things you can do in design mode:

• Add locales, using the locales dropdown menu. When you switch to a new locale, you can define content to send to users tho use that locale. After you save a locale, it will appear in the Active section of the locales dropdown menu. For more information about locales, read Supporting Multiple Languages.

• Edit your template's details without leaving design mode, by clicking the Details button. This will bring up a side panel where you can make changes.

• View how the template will look when rendered with dynamic data for a particular user of your choosing, by clicking the Preview toggle.

• Send a copy of the in-app message to yourself or other internal users, with the Send test message dropdown menu. On this menu, you can choose To yourself, To an internal list, As random users, or To another address. For more info, read Sending Test Messages.

• Copy the template to the current or another project, by opening the overflow menu (three dots) and choosing Make a copy.

• Export the template's HTML, by opening the overflow menu (three dots) and choosing Export html. This will download a file to your local machine.

# Buttons and links in in-app messages

As you're designing the content of an in-app message, you'll need to add buttons and links, which can navigate users to content in your app or on your website, trigger custom behavior in your app, or simply close the message.

Every in-app message must contain at least a single link or button, with a valid URL, so that the user has a way to close it. If you don't include one, the template editor won't let you save the template.

URLs for buttons and links can be:

• Web URLs — For example, https://www.example.com/sample/content

• Custom actions — For example, action://customActionName, where customActionName is the name of any custom action supported by your mobile app's custom action handler. If you omit customActionName (leaving only action://), tapping the button or link simply closes the in-app message.

• Iterable actions — For example, iterable://actionName, where actionName is the name of a pre-defined action supported by Iterable's SDK. For example, to create a delete button/or link, use URL iterable://delete. To create a close button/link, use URL iterable://dismiss.

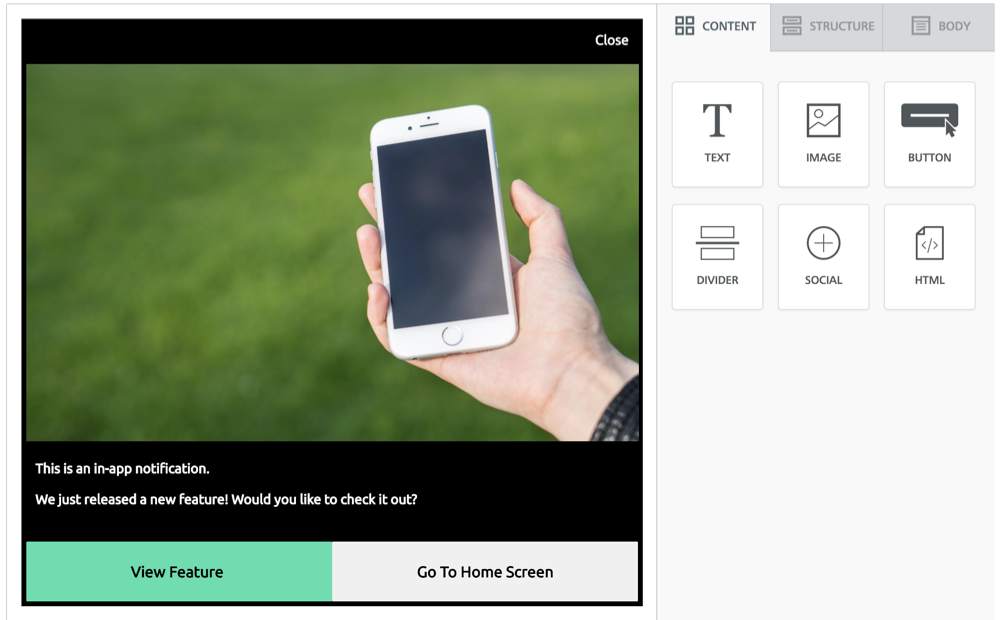

# Example in-app message buttons

Here's an example in-app message template, shown as it's being edited in Iterable:

• The Close button might have URL iterable://dismiss, which closes the message.

• The View Feature might have URL action://feature, which tells the app to invoke the custom action triggered by feature.

• The Go To Home Screen button might have URL action://home, which tells the app to invoke the custom action triggered by home.

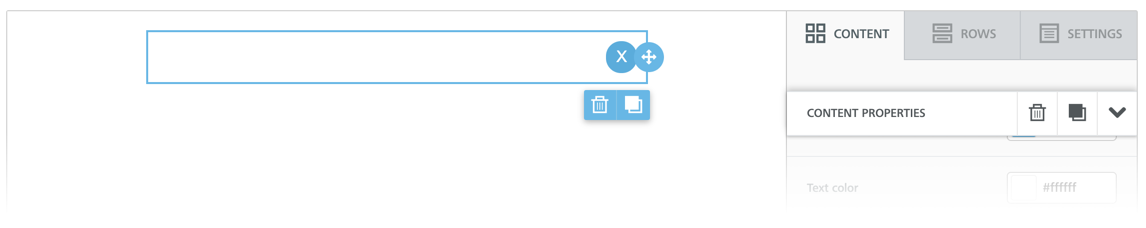

# X-style close buttons

One way to create an X-style close button, using the Drag and Drop editor:

1. Add a button to the message template.

2. Set the button's text to X.

3. Set the button's URL to action://, which closes the in-app message when tapped.

4. Choose a Background Color for the button.

5. Choose a Text Color for the button.

6. For Align, choose right.

7. Specify a Border Radius of 20.

8. For Content Padding specify:

   • Top and Bottom: 0
   • Left and Right: 10

9. Specify a Solid, 1-pixel border of any desired color.

# Previewing an in-app message and sending test messages

After configuring and designing your template, preview it and make any necessary fixes. There are a couple of ways to check your template: using the Preview page, and sending test messages.

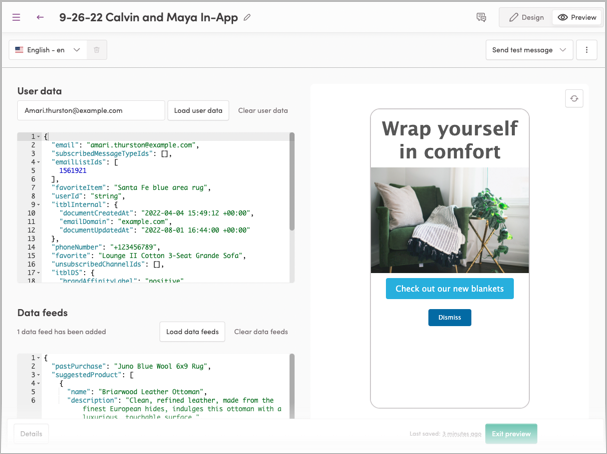

# Previewing a template with user data

To see what your in-app message will look like when rendered with different combinations of user data, data feeds, Catalog data, and on different devices, use the Preview page. On this page, you can load a user profile and see how the template will render for that user.

To preview an in-app message template with user data:

1. With the template open, click Preview.



2. In the User data field, enter the email address of one of the users in your project. Then, click Load user data. That user's data will load in the large text area below the User data input.

   Feel free to play around with this data, modifying it as needed — your changes won't get saved to the user profile. Treat this page as a playground, and check how different combinations of data will cause your template to render. Make sure that the template looks correct in all the different ways it may appear to your users.

   TIP

   If the preview doesn't update after you've edited or loaded data, click the refresh icon.

3. To see how your template will render with a data feed loaded, click Load data feeds. Feel free to edit the loaded data feed data, to see how *different data will look. This won't affect the data feed itself.

For more information on previewing templates with data, check out Previewing a Template with User Data.

# Sending a test message

After setting up your template, designing its content, and previewing it with user data, it's always a good idea to send yourself (and other internal users) some test messages. This way, you can validate the message from the perspective of your users.

To send a copy of the in-app messages to yourself or another internal user, open the template and open up design mode. Then, use the Send test message dropdown menu and choose To yourself, To an internal list, As random users, or To another address. For more info about these options, read Sending Test Messages.

# Sending an in-app message campaign

You've built and tested your template. Now, you can use it with some campaigns. To learn how, read:

• Sending or Scheduling a Blast Campaign
• Activating a Triggered Campaign
• Tutorial: Build Your First Journey

When creating a campaign (whether standalone as part of a journey), you'll select a template — or the content of another, already existing campaign — to use as the starting point for its content. The new campaign will get its own copy of the template, so you can customize it however you like. No need to worry about affecting the original template.

Similarly, if you change a template that you've already used in a campaign, your changes will affect the template itself, but not the already-existing campaigns.

# Want to learn more?

For more information about some of the topics in this article, check out these resources. Iterable Academy is open to everyone — you don't need to be an Iterable customer!

Iterable Academy

• Product Bite: Creating an In-App Template

Support docs

• In-App Messages and Mobile Inbox
• Sending In-App Messages
• Working with Templates
