Events for In-App Messages and Mobile Inbox

As users interact with in-app messages and your app's mobile inbox, Iterable can capture various events that describe the actions they're taking. You can use these events to:

  • Determine how users are interacting with your in-app message campaigns.
  • Segment users and filter journeys.

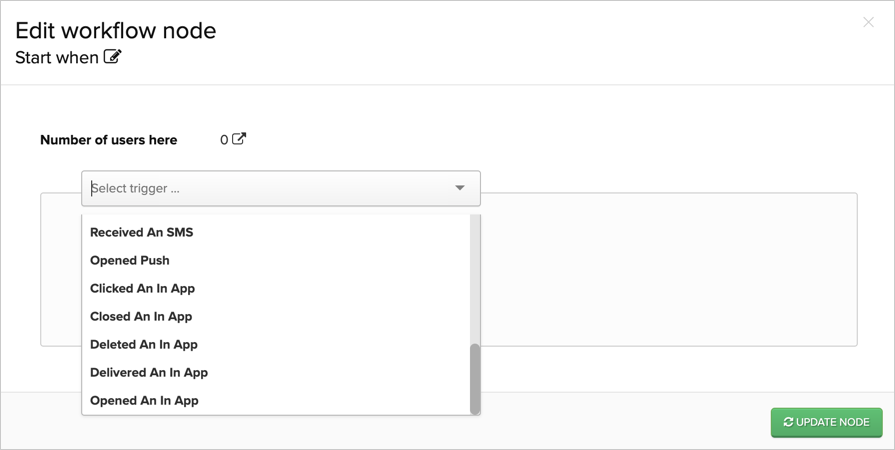

  • Trigger journeys.
  • Trigger system webhooks.

This document describes the in-app message and Mobile Inbox events Iterable can capture, how to capture them, and how to use them.

TIP

For more information about event tracking, read Tracking Events with Iterable's Mobile SDKs.

In this article

APIs for capturing in-app message events

Iterable's mobile SDKs and web SDK automatically capture the events described in this document (however, the web SDK does not yet provide a mobile inbox, and does not capture mobile inbox-related events).

It's also possible to capture these events by making calls to Iterable's API:

Other in-app message and Mobile Inbox APIs include:

NOTE

Iterable does not provide APIs for tracking inbox session or inbox message impression events. To track these events, use Iterable's mobile SDKs.

Event definitions

This section describes the various events Iterable can capture for in-app messages and Mobile Inbox.

In-browser message events

There are no events specific to in-browser messages (in-app messages that target a website instead of a mobile app). They're standard in-app message events, with platform set to Web, deviceId set to the browser user agent associated with the event, and appPackageName is set to your app's package name.

In-app click

An in-app click event indicates that a user tapped a link or button in an in-app message.

NOTES

Fields:

  • campaign — An object containing various fields that describe the campaign associated with the event (object)
  • campaignId — The ID of the campaign associated with the message (long)
  • clickedUrl — The URL of the clicked link/button (string, if available)
  • createdAt — When the event occurred (date)
  • deviceInfo — An object containing various fields that describe the device and app associated with the event (object)
    • deviceId — The device's unique identifier, or a browser user agent (string)
    • platform — iOS, Android, or Web (string)
    • appPackageName — The package name of the app (string)
  • email — The email address of the recipient (string)
  • eventType — inAppClick (string)
  • expiresAt — The expiration date and time for the message associated with the event (date)
  • inboxSessionId — The ID of the inbox session in which this event occurred. Not present if there's not an inbox session associated with the event.
  • messageContext — An object containing various fields that describe the message associated with the event (object)
    • location — The location from which the event was initiated: in-app, inbox or a custom value (string).
    • saveToInbox — Whether or not the message associated with the event was configured to use the inbox (boolean)
    • silentInbox — Whether or not the message associated with the event was configured to send directly to the inbox (boolean)
  • messageId — The ID of the message associated with the event (string)
  • templateId — The ID of the template associated with the message (long)

In-app close

An in-app close event indicates that a user closed an in-app message by tapping a button or link in the message's content or by tapping a back button (or an auto-generated close button on an in-browser message, if your web SDK implementation is configured to add one).

NOTES

Fields:

  • campaign — An object containing various fields that describe the campaign associated with the event (object)
  • campaignId — The ID of the campaign associated with the message (long)
  • clickedUrl — The URL (if any) of the button/link the user clicked to close the in-app message.
  • closeAction — The type of action that initiated the close: link (for buttons or links), back (for a back button), other or a custom value (string)
  • createdAt — When the event occurred (date)
  • deviceInfo — An object containing various fields that describe the device and app associated with the event (object)
    • deviceId — The device's unique identifier, or a browser user agent (string)
    • platform — iOS, Android, or Web (string)
    • appPackageName — The package name of the app (string)
  • email — The email address of the recipient (string)
  • eventType — inAppClose (string)
  • expiresAt — The expiration date and time for the message associated with the event (date)
  • inboxSessionId — The ID of the inbox session in which this event occurred. Not present if there's not an inbox session associated with the event.
  • messageContext — An object containing various fields that describe the message associated with the event (object)
    • location — The location from which the event was initiated: in-app, inbox or a custom value (string).
    • saveToInbox — Whether or not the message associated with the event was configured to use the inbox (boolean)
    • silentInbox — Whether or not the message associated with the event was configured to send directly to the inbox (boolean)
  • messageId — The ID of the message associated with the event (string)
  • templateId — The ID of the template associated with the message (long)

In-app delete

An in-app delete event indicates that a user deleted an inbox-enabled in-app message by swiping it in the inbox or clicking a delete button/link (with URL iterable://delete) in its content.

NOTES

  • Iterable's mobile SDKs automatically capture in-app delete events. To capture them manually, call the POST /api/events/inAppConsume endpoint, making sure to provide a deleteAction value. When deleteAction is excluded, the API does not generate this event.
  • For a description of when Iterable's mobile SDKs capture click, close, and delete events, read about click, close, and delete events.

Fields:

  • campaign — An object containing various fields that describe the campaign associated with the event (object)
  • campaignId — The ID of the campaign associated with the message (long)
  • createdAt — When the event occurred (date)
  • deleteAction — How the message was deleted: inbox-swipe (the message was deleted with a swipe in the inbox), or delete-button (the user tapped a button or link having URL iterable://delete) or a custom value.
  • deviceInfo — An object containing various fields that describe the device and app associated with the event (object)
    • deviceId — The device's unique identifier, or a browser user agent (string)
    • platform — iOS, Android, or Web (string)
    • appPackageName — The package name of the app (string)
  • email — The email address of the recipient (string)
  • eventType — inAppDelete (string)
  • expiresAt — The expiration date and time for the message associated with the event (date)
  • inboxSessionId — The ID of the inbox session in which this event occurred. Not present if there's not an inbox session associated with the event.
  • messageContext — An object containing various fields that describe the message associated with the event (object)
    • location — The location from which the event was initiated: in-app, inbox or a custom value (string).
    • saveToInbox — Whether or not the message associated with the event was configured to use the inbox (boolean)
    • silentInbox — Whether or not the message associated with the event was configured to send directly to the inbox (boolean)
  • messageId — The ID of the message associated with the event (string)
  • templateId — The ID of the template associated with the message (long)

In-app delivery

An in-app delivery event indicates that an in-app message arrived on a user's device. It does not mean that the user viewed the message.

NOTE

Iterable's mobile SDKs automatically capture in-app delivery events. To capture them manually, call the POST /api/events/trackInAppDelivery API endpoint.

Fields:

  • campaign — An object containing various fields that describe the campaign associated with the event (object)
  • campaignId — The ID of the campaign associated with the message (long)
  • createdAt — When the event occurred (date)
  • deviceInfo — An object containing various fields that describe the device and app associated with the event (object)
    • deviceId — The device's unique identifier, or a browser user agent (string)
    • platform — iOS, Android, or Web (string)
    • appPackageName — The package name of the app (string)
  • email — The email address of the recipient (string)
  • eventType — inAppDelivery (string)
  • expiresAt — The expiration date and time for the message associated with the event (date)
  • messageContext — An object containing various fields that describe the message associated with the event (object)
    • saveToInbox — Whether or not the message associated with the event was configured to use the inbox (boolean)
    • silentInbox — Whether or not the message associated with the event was configured to send directly to the inbox (boolean)
  • messageId — The ID of the message associated with the event (string)
  • templateId — The ID of the template associated with the message (long)

In-app open

An in-app open event indicates that an in-app message was displayed, either because it appeared on arrival or because the user selected it in the inbox.

NOTE

Iterable's mobile SDKs automatically track in-app open events. However, you can also track these events manually by calling POST /api/events/trackInAppOpen. This endpoint also sets a message's read field to true.

Fields:

  • campaign — An object containing various fields that describe the campaign associated with the event (object)
  • campaignId — The ID of the campaign associated with the message (long)
  • createdAt — When the event occurred (date)
  • deviceInfo — An object containing various fields that describe the device and app associated with the event (object)
    • deviceId — The device's unique identifier, or a browser user agent (string)
    • platform — iOS, Android, or Web (string)
    • appPackageName — The package name of the app (string)
  • email — The email address of the recipient (string)
  • eventType — inAppOpen (string)
  • expiresAt — The expiration date and time for the message associated with the event (date)
  • inboxSessionId — The ID of the inbox session in which this event occurred. Not present if there's not an inbox session associated with the event.
  • messageContext — An object containing various fields that describe the message associated with the event (object)
    • location — The location from which the event was initiated: in-app, inbox or a custom value (string)
    • saveToInbox — Whether or not the message associated with the event was configured to use the inbox (boolean)
    • silentInbox — Whether or not the message associated with the event was configured to send directly to the inbox (boolean)
  • messageId — The ID of the message associated with the event (string)
  • templateId — The ID of the template associated with the message (long)

In-app send

An in-app send event indicates that Iterable sent an in-app message to a user. It does not mean that the user received the message.

NOTE

Iterable captures this event any time it sends an in-app message to a user, regardless of whether it was triggered by the web interface or the POST /api/inApp/target API.

Fields:

  • campaign — An object containing various fields that describe the campaign associated with the event (object)
  • campaignId — The ID of the campaign associated with the message (long)
  • channelIds — The IDs of the channels associated with the in-app message.
  • contentId — The ID of the template revision for the message associated with the event (long)
  • createdAt — When the event occurred (date)
  • email — The email address of the recipient (string)
  • eventType — inAppSend (string)
  • expiresAt — The expiration date and time for the message associated with the event (date)
  • messageContext — An object containing various fields that describe the message associated with the event (object)
    • saveToInbox — Whether or not the message associated with the event was configured to use the inbox (boolean)
    • silentInbox — Whether or not the message associated with the event was configured to send directly to the inbox (boolean)
  • messageId — The ID of the message associated with the event (string)
  • messageTypeIds — The IDs of the message types associated with the in-app message.
  • templateId — The ID of the template associated with the message (long)

In-app send skip

An in-app send skip event indicates that Iterable did not send an in-app message to an intended recipient, for any of various reasons.

NOTE

Iterable captures this event automatically. There is no way to generate it manually.

Fields:

  • campaign — An object containing various fields that describe the campaign associated with the event (object)
  • campaignId — The ID of the campaign associated with the message (long)
  • createdAt — When the event occurred (date)
  • email — The email address of the recipient (string)
  • eventType — inAppSendSkip (string)
  • messageId — The ID of the message associated with the event (string)
  • reason — A string that describes why Iterable did not send the message to the intended recipient; for example, DuplicateMarketingMessage (string)

Inbox message impression

An inbox message impression event captures the number of unique times a specific message appeared in the message list during a single inbox session (period when the inbox was open). It's useful for understanding how many times a user had the opportunity to notice a particular message in the inbox during a single inbox session.

NOTE

Iterable's mobile SDKs automatically capture inbox message impression events. It is not possible to capture these events manually.

Fields:

  • campaign — An object containing various fields that describe the campaign associated with the event (object)
  • campaignId — The ID of the campaign associated with the message (long)
  • createdAt — When the event was created; close to the end of the session (date)
  • deviceInfo — An object containing various fields that describe the device and app associated with the event (object)
    • deviceId — The device's unique identifier, or a browser user agent (string)
    • platform — iOS or Android (string)
    • appPackageName — The package name of the app (string)
  • email — The email address of the recipient (string)
  • eventType — inboxMessageImpression (string)
  • expiresAt — The expiration date and time for the message associated with the event (date)
  • impressionCount — The number of times the message appeared in the inbox list during the inbox session associated with this event (long)
  • inboxSessionEnd — The date and time when the inbox session ended (date)
  • inboxSessionId — The ID of the inbox session associated with this event.
  • inboxSessionStart — The date and time when the inbox session started (date)
  • messageContext — An object containing various fields that describe the message associated with the event (object)
    • saveToInbox — Whether or not the message associated with the event was configured to use the inbox (boolean)
    • silentInbox — Whether or not the message associated with the event was configured to send directly to the inbox (boolean)
  • messageId — The ID of the message associated with the event (string)
  • templateId — The ID of the template associated with the message (long)
  • totalDuration — The total number of seconds the message was visible in the inbox during the inbox session associated with this event.

Inbox session

An inbox session event indicates that an app displayed the mobile inbox and captures how long it was open. The time span for this event starts when the inbox appears on the screen and ends when the user navigates away, minimizes the app, or closes the app. Tapping on a message in the inbox to view its content does not end the inbox session.

NOTE

Iterable's mobile SDKs automatically capture inbox session events. It is not possible to capture these events manually.

Fields:

  • createdAt — When the event was created; close to the end of the session (date)
  • deviceInfo — An object containing various fields that describe the device and app associated with the event (object)
    • deviceId — The device's unique identifier (string)
    • platform — iOS or Android (string)
    • appPackageName — The package name of the app (string)
  • email — The email address of the recipient (string)
  • endTotalMessageCount — The number of messages in the inbox at the end of the inbox session. May differ from startTotalMessageCount since messages can be added or deleted during a session (long)
  • eventType — inboxSession (string)
  • inboxSessionEnd — The date and time when the inbox session ended (date)
  • inboxSessionId — The ID of this inbox session.
  • inboxSessionStart — The date and time when the inbox session started (date)
  • startTotalMessageCount — The number of messages in the inbox at the start of the inbox session (long)
  • uniqueImpressionCount — The number of unique messages that made an impression during the inbox session (long)

Click, close, and delete events

When a user taps a link or button in an in-app message, events are saved to their user profile in Iterable.

Using in-app message and Mobile Inbox events

Iterable provides various ways to make use of in-app message and Mobile Inbox events, as described below.

Campaign analytics

Use campaign analytics to learn how users are interacting with your in-app messages.

To view the analytics for an in-app message campaign, navigate to Messaging > Campaigns and open the (active) campaign in question. Use the drop-down menu initially labeled No Metrics Selected to pick the metrics you'd like to view.

Available in-app message and Mobile Inbox analytics include:

  • Average order value
  • In-app click rate
  • Revenue
  • Total in-app clicks
  • Total in-app closes
  • Total in-app deletes
  • Total in-app deliveries
  • Total in-app holdouts
  • Total in-app opens
  • Total in-app sends
  • Total in-app send skips
  • Total inbox impressions
  • Total purchases
  • Total unsubscribes
  • Unique in-app clicks
  • Unique purchases
  • Unique unsubscribes

NOTE

Total in-app deliveries can be higher than total sends, since any given user may receive the message on multiple devices and each device counts as a delivery. Similarly, a user can log out and log back in, which downloads the in-app messages again and creates new delivery events.

Segmenting users and filtering journeys

In-app message and Mobile Inbox events can be used to segment users or filter them in a journey.

For example:

  • This screenshot shows a segmentation query that searches for users that have five or more inbox message impressions for a particular messageId:

    Segmenting on in-app message and inbox events

  • This screenshot shows a journey filter on users that have deleted any messages from their inbox by searching for In-App Delete events with messageContext.location set to inbox:

    Filtering a journey with in-app message or inbox events

The following in-app message and Mobile Inbox events can be used to segment users and filter journeys:

Triggering journeys

In-app message and Mobile Inbox events can be used to trigger journeys for particular users.

To do this, navigate to Content > Journeys and open the necessary journey. Edit the journey's Start tile and select the appropriate entry source:

Triggering a journey with in-app message or inbox events

The following in-app message and Mobile Inbox events can trigger journeys:

NOTE

It is not possible to trigger a journey based on an inbox session or inbox message impression event.

Triggering system webhooks

Inbox and in-app events can be used to trigger system webhooks to send data to external systems.

To do this, navigate to Integrations > System Webhooks and create or edit a webhook. Select the in-app or Mobile Inbox events that should trigger the webhook:

Triggering a system webhook with in-app message or inbox events

The following in-app message and Mobile Inbox events can trigger system webhooks:

NOTE

It is not possible to trigger a system webhook based on an inbox session or inbox message impression event.

Further reading

User guides:

Developer documentation:

Related articles
