Customizing Mobile Inbox on Android

A mobile inbox provides an app-specific place for users to save in-app messages to read later.

Iterable's Android SDK includes a default user interface for a mobile inbox, and you can customize it to match your organization's branding and styles, and to display any necessary fields.

This document describes different ways to customize the mobile inbox provided by Iterable's Android SDK.

# In this article

# Setting up the mobile inbox

Before customizing your app's mobile inbox, read Setting up Mobile Inbox on Android to learn how to set it up and display it.

# Sample app

Sample app

To better undersand how to customize your app's mobile inbox, take a look at the code in the Inbox Customization sample project (found in the same GitHub repository as Iterable's Android SDK).

# Customizing the mobile inbox

This section describes how to customize the user interface of the mobile inbox embedded in your Android mobile app.

NOTE

Some customizations require you to create a subclass of IterableInboxFragment, and others do not.

# Empty state

In an empty mobile inbox, you can display custom text (title and body) to help orient your users. These values are blank by default, and they'll wrap to multiple lines if needed. For example:

Android mobile inbox empty state

Use this code to set this text when using the mobile inbox fragment:

Kotlin

var bundle = Bundle()
bundle.putString(IterableConstants.NO_MESSAGES_TITLE,"No saved messages")
bundle.putString(IterableConstants.NO_MESSAGES_BODY, "Check again later!")
val fragment: Fragment = Fragment.instantiate(this, IterableInboxFragment::class.java.name, bundle))

Use this code to set the text when using the mobile inbox activity:

Kotlin

var intent = Intent(this.context,IterableInboxActivity::class.java)
intent.putExtra(IterableConstants.NO_MESSAGES_TITLE, "No saved messages")
intent.putExtra(IterableConstants.NO_MESSAGES_BODY, "Check again later!")
startActivity(intent)

Java

startActivity(
    new Intent(getApplicationContext(),IterableInboxActivity.class)
        .putExtra(IterableConstants.NO_MESSAGES_TITLE,"No saved messages")
        .putExtra(IterableConstants.NO_MESSAGES_BODY,"Check again later!")
);

# Message display style (popup or navigation)

A mobile inbox can display messages as popups directly in the inbox view (the default) or as standalone activities. To change this setting, either:

  • Set an extra for the activity's intent:

    Kotlin

    val intent = Intent(context, IterableInboxActivity::class.java)
intent.putExtra("inboxMode", InboxMode.ACTIVITY)
startActivity(intent)

    Java

    Intent intent = new Intent(getContext(), IterableInboxActivity.class);
intent.putExtra("inboxMode", InboxMode.ACTIVITY);
startActivity(intent);

  • Pass constructor parameters to the fragment:

    Kotlin

    val inboxFragment = IterableInboxFragment.newInstance(InboxMode.ACTIVITY, 0)

    Java

    IterableInboxFragment inboxFragment = IterableInboxFragment.newInstance(InboxMode.ACTIVITY)

# Activity title

When launching the mobile inbox as an activity, change the title by passing an activityTitle argument in the intent:

Kotlin

val intent = Intent(context, IterableInboxActivity::class.java)
intent.putExtra("activityTitle", "My Inbox")
startActivity(intent)

Java

Intent intent = new Intent(getContext(), IterableInboxActivity.class);
intent.putExtra("activityTitle", "My Inbox");
startActivity(intent);

# Inbox toolbar (SDK v3.9.0 and above)

Starting with SDK version 3.9.0, you can display an optional toolbar above the inbox list using IterableInboxToolbarView. The toolbar is off by default, so the inbox behaves exactly as it did in previous SDK versions unless you opt in.

Configure the toolbar with the InboxToolbarOption sealed interface, which has these options:

  • None (default) — No toolbar.
  • Default — A title-only toolbar above the inbox list.
  • WithBackButton — A title plus a back-navigation icon. By default, the back action calls OnBackPressedDispatcher. To customize it, have your host Activity or parent Fragment implement IterableInboxToolbarBackListener.
  • Custom(layoutRes) — Inflates your own toolbar layout. To wire your layout to the SDK, tag views with these reserved IDs (both are optional):
    • @id/iterable_reserved_inbox_toolbar_action — Automatically wired to the SDK's back handler.
    • @id/iterable_reserved_inbox_toolbar_title — Automatically bound to the toolbar title.

IMPORTANT

When the toolbar is enabled, the host activity must use a Theme.AppCompat descendant.

# Configure the toolbar on the fragment

Pass an InboxToolbarOption (and, optionally, a title) to IterableInboxFragment.newInstance(...):

Kotlin

val inboxFragment = IterableInboxFragment.newInstance(
    InboxToolbarOption.WithBackButton,
    "My Inbox"
)

Java

IterableInboxFragment inboxFragment = IterableInboxFragment.newInstance(
    InboxToolbarOption.WithBackButton.INSTANCE,
    "My Inbox"
);

# Configure the toolbar on the activity

When launching the inbox as an activity, set the TOOLBAR_OPTION and TOOLBAR_TITLE intent extras:

Kotlin

val intent = Intent(context, IterableInboxActivity::class.java)
intent.putExtra(IterableInboxFragment.TOOLBAR_OPTION, InboxToolbarOption.WithBackButton)
intent.putExtra(IterableInboxFragment.TOOLBAR_TITLE, "My Inbox")
startActivity(intent)

Java

Intent intent = new Intent(getContext(), IterableInboxActivity.class);
intent.putExtra(IterableInboxFragment.TOOLBAR_OPTION, InboxToolbarOption.WithBackButton.INSTANCE);
intent.putExtra(IterableInboxFragment.TOOLBAR_TITLE, "My Inbox");
startActivity(intent);

# Cell layout, colors, and font

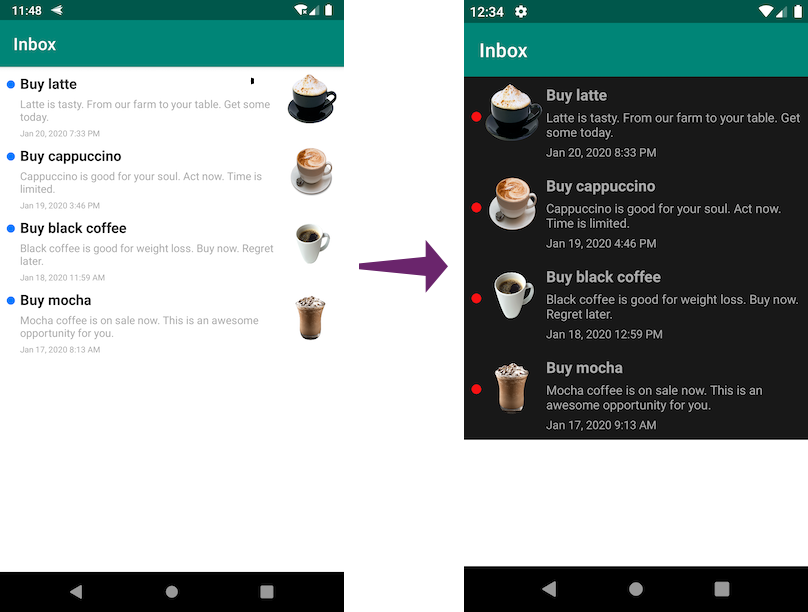

Inbox cells with a custom layout

TIP

In the sample app, tap Inbox with Custom Cell to see an example of an inbox that uses custom cells.

To modify the font, color or layout of inbox cells:

  1. Copy the iterable_inbox_item.xml layout file from iterableapi-ui. Give it a new name, such as custom_inbox_item.xml.

  2. In the new file, change the layout, colors and fonts to match your app’s styles.

  3. Specify this layout ID when launching the activity:

    Kotlin

    val intent = Intent(context, IterableInboxActivity::class.java)
intent.putExtra("itemLayoutId", R.layout.custom_inbox_item)
startActivity(intent)

    Java

    Intent intent = new Intent(getContext(), IterableInboxActivity.class);
intent.putExtra("itemLayoutId", R.layout.custom_inbox_item);
startActivity(intent);

  4. Alternatively, create the fragment with custom parameters:

    Kotlin

    val inboxFragment = IterableInboxFragment.newInstance(InboxMode.POPUP, R.layout.custom_inbox_item)

    Java

    IterableInboxFragment inboxFragment = IterableInboxFragment.newInstance(InboxMode.POPUP, R.layout.custom_inbox_item);

# Date format and visibility

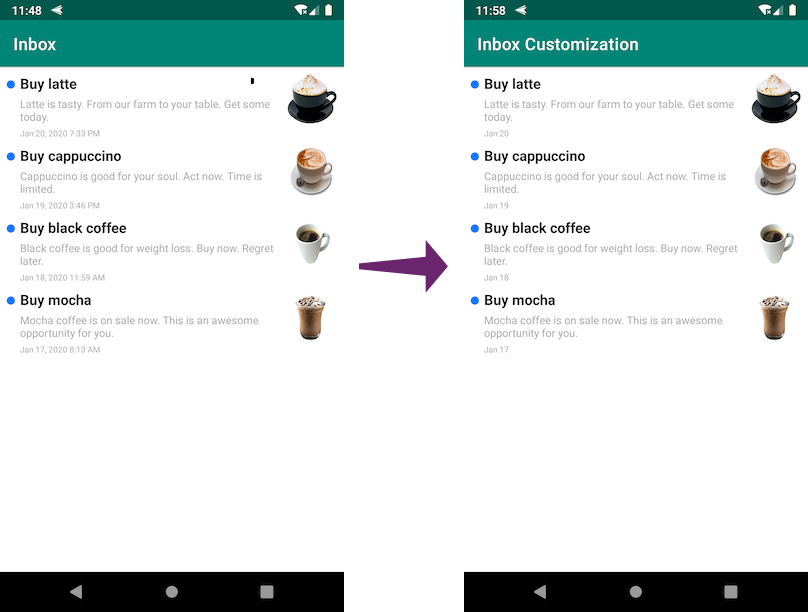

Inbox with custom date format

TIP

In the sample app, tap Change Date Format to see an example of an inbox that uses custom cells.

To change the format or visibility of the date field for each message cell, subclass IterableInboxFragment and set a date mapper in onCreate. The date mapper takes an IterableInAppMessage and returns a string representing the creation date of the message. If the date field should be blank, return null.

Kotlin

class CustomInboxDateMapperFragment : IterableInboxFragment() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setDateMapper { message ->
            DateUtils.getRelativeTimeSpanString(
                    message.createdAt.time,
                    Date().time,
                    0,
                    DateUtils.FORMAT_ABBREV_ALL
            )
        }
    }
}

Java

public class CustomInboxDateMapperJavaFragment extends IterableInboxFragment implements IterableInboxDateMapper {
    @Override
    public void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setDateMapper(this);
    }

    @Nullable
    @Override
    public CharSequence mapMessageToDateString(@NonNull IterableInAppMessage message) {
        return DateUtils.getRelativeTimeSpanString(
                message.getCreatedAt().getTime(),
                new Date().getTime(),
                0,
                DateUtils.FORMAT_ABBREV_ALL
        );
    }
}

# Filtering messages

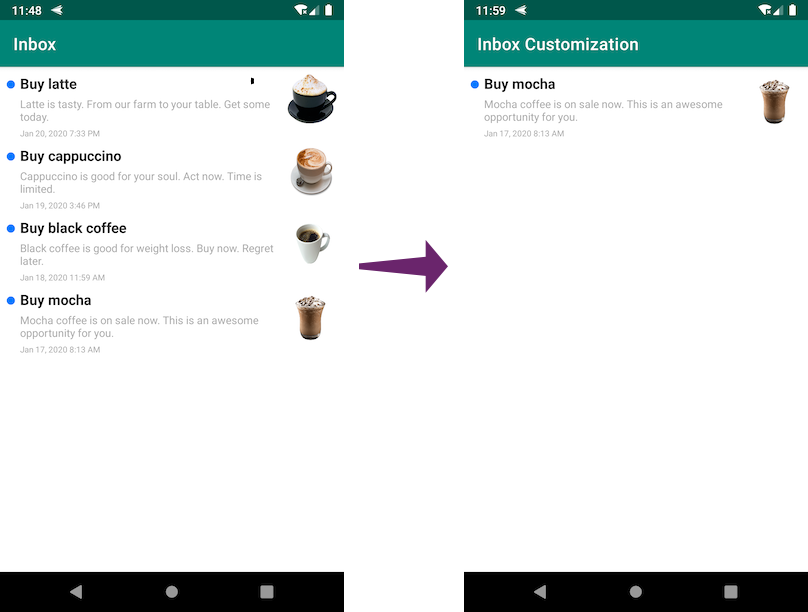

Inbox with filtered messages

TIP

In the sample app, tap Filter by Message Type or Filter by Message Title to see an example of an inbox that uses custom filtering.

To filter which messages are displayed in the mobile inbox, subclass IterableInboxFragment and call setFilter in the onCreate method. The filter should take an IterableInAppMessage and return a boolean: true to show the message, false otherwise.

IterableInboxFilter is an interface that declares a filter method.

Kotlin

class CustomInboxFilterFragment : IterableInboxFragment() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setFilter { message -> message.customPayload?.has("price") == true }
    }
}

Kotlin (alternative implementation):

class CustomInboxFilterFragment : IterableInboxFragment(), IterableInboxFilter {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setFilter(this)
    }

    override fun filter(message: IterableInAppMessage): Boolean {
        return message.customPayload?.has("price") == true
    }
}

Java

public class CustomInboxFilterFragment extends IterableInboxFragment implements IterableInboxFilter {
    @Override
    public void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setFilter(this);
    }

    @Override
    public boolean filter(@NonNull IterableInAppMessage message) {
        JSONObject payload = message.getCustomPayload();
        return payload != null && payload.has("price");
    }
}

# Sorting messages

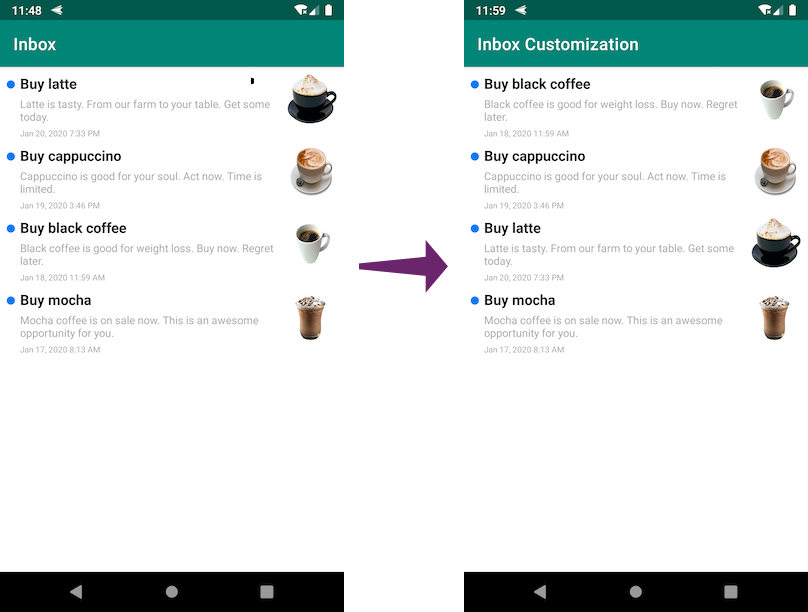

Inbox with sorted messages

TIP

In the sample app, tap Sort by Title Ascending or Sort by Date Ascending to see an example of an inbox that changes the way messages are sorted.

By default, Mobile Inbox sorts messages descending by date. However, it is possible to sort the message order in other ways.

To sort the messages in the mobile inbox, subclass IterableInboxFragment and set a comparator in onCreate. IterableInboxComparator is a standard Java Comparator interface: return a negative integer, zero, or a positive integer when the first message is less than, equal to, or greater than the second.

Kotlin

class CustomInboxComparatorFragment : IterableInboxFragment() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setComparator { message1, message2 ->
            message1.createdAt.compareTo(message2.createdAt) // Sort by creation date ascending
        }
    }
}

Kotlin (alternative implementation):

class CustomInboxComparatorFragment : IterableInboxFragment(), IterableInboxComparator {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setComparator(this)
    }

    override fun compare(message1: IterableInAppMessage, message2: IterableInAppMessage): Int {
        return message1.createdAt.compareTo(message2.createdAt)   // Sort by creation date ascending
    }
}

public class CustomInboxComparatorJavaFragment extends IterableInboxFragment implements IterableInboxComparator {
    @Override
    public void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setComparator(this);
    }

    @Override
    public int compare(@NonNull IterableInAppMessage message1, @NonNull IterableInAppMessage message2) {
        // Sort by creation date ascending
        return message1.getCreatedAt().compareTo(message2.getCreatedAt());
    }
}

# Adding fields to the inbox cell

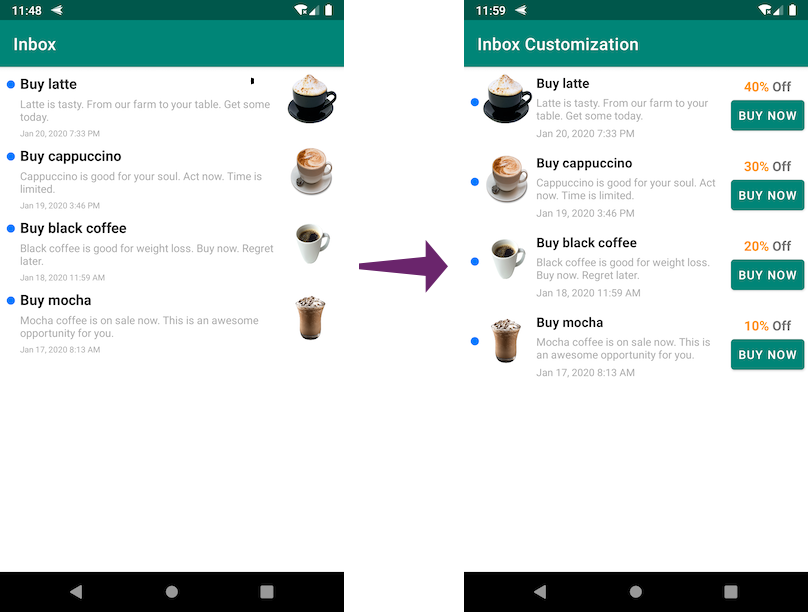

Inbox items with added fields

TIP

In the sample app, tap Additional Fields to see an example of an inbox that has additional fields on each cell.

To add additional fields to the items displayed in the mobile inbox:

  1. Copy the iterable_inbox_item.xml layout file from iterableapi-ui. Give it a new name, such as custom_inbox_item.xml.

  2. Subclass IterableInboxFragment and set the adapter extension. The methods are similar to the ones in a RecyclerView adapter, but instead of a RecyclerView.ViewHolder class, the extension is a plain Java class. See IterableInboxAdapterExtension for more details.

    • Return your custom layout in getLayoutForViewType.
    • Create a static inner plain Java class for a ViewHolderExtension.
    • Add fields referencing the new views in your layout.
    • Create a constructor with calls to findViewById to populate those fields.
    • In createViewHolderExtension, call your view holder extension’s constructor and return the result.
    • In onBindViewHolder, update the UI for the given inbox message using the standard Iterable ViewHolder (holding references to the standard fields, like title, subtitle and others) and your extension object (holding references to your custom views).

For a reference implementation, see the example in the next section.

# Multiple cell layouts

Inbox with multiple cell types

TIP

In the sample app, tap Multiple Cell Types to see an example of an inbox that uses multiple cell types.

To display different inbox items with different interfaces, follow these steps:

  1. Copy the iterable_inbox_item.xml layout file from iterableapi-ui. Give it a new name, such as custom_inbox_item.xml.

  2. Subclass IterableInboxFragment and set the adapter extension. See IterableInboxAdapterExtension for more details.

  3. Create integer constants for every type of cell you’re planning to have in your custom inbox.

  4. Return those constants in getItemViewType by checking the inbox message attributes.

  5. The same constants will then be passed to getLayoutForViewType. Use them to return different layouts based on the view type.

Kotlin

class CustomInboxFieldsFragment : IterableInboxFragment(), IterableInboxAdapterExtension<CustomInboxFieldsFragment.ViewHolder> {
    val ITEM_TYPE_DEFAULT = 1
    val ITEM_TYPE_SALE = 2

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setAdapterExtension(this)
    }

    override fun getItemViewType(message: IterableInAppMessage): Int {
        if (message.customPayload?.has("price") == true) {
            return ITEM_TYPE_SALE
        } else {
            return ITEM_TYPE_DEFAULT
        }
    }

    override fun getLayoutForViewType(viewType: Int): Int {
        if (viewType == ITEM_TYPE_SALE) {
            return R.layout.inbox_item_sale
        } else {
            return R.layout.inbox_item_default
        }
    }

    override fun createViewHolderExtension(view: View, viewType: Int): ViewHolder? {
        if (viewType == ITEM_TYPE_SALE) {
            return SaleViewHolder(view)
        } else {
            return null
        }
    }

    override fun onBindViewHolder(viewHolder: IterableInboxAdapter.ViewHolder, holderExtension: ViewHolder?, message: IterableInAppMessage) {
        if (holderExtension is SaleViewHolder) {
            holderExtension.price?.text = message.customPayload?.optString("price")
        }
    }

    open class ViewHolder
    class SaleViewHolder(view: View) : ViewHolder() {
        var price: TextView? = null

        init {
            this.price = view.findViewById(R.id.price)
        }
    }
}

Java

 public class CustomInboxFieldsJavaFragment extends IterableInboxFragment implements IterableInboxAdapterExtension<CustomInboxFieldsJavaFragment.ViewHolder> {
    private static final int ITEM_TYPE_DEFAULT = 1;
    private static final int ITEM_TYPE_SALE = 2;

    @Override
    public int getItemViewType(@NonNull IterableInAppMessage message) {
        JSONObject payload = message.getCustomPayload();
        if (payload != null && payload.has("price")) {
            return ITEM_TYPE_SALE;
        } else {
            return ITEM_TYPE_DEFAULT;
        }
    }

    @Override
    public int getLayoutForViewType(int viewType) {
        if (viewType == ITEM_TYPE_SALE) {
            return R.layout.inbox_item_sale;
        } else {
            return R.layout.inbox_item_default;
        }
    }

    @Nullable
    @Override
    public ViewHolder createViewHolderExtension(@NonNull View view, int viewType) {
        if (viewType == ITEM_TYPE_SALE) {
            return new SaleViewHolder(view);
        } else {
            return null;
        }
    }

    @Override
    public void onBindViewHolder(@NonNull IterableInboxAdapter.ViewHolder viewHolder, @Nullable ViewHolder holderExtension, @NonNull IterableInAppMessage message) {
        if (holderExtension instanceof SaleViewHolder) {
            SaleViewHolder saleViewHolder = (SaleViewHolder) holderExtension;
            JSONObject payload = message.getCustomPayload();
            if (payload != null) {
                saleViewHolder.price.setText(payload.optString("price"));
            }
        }
    }

    static class ViewHolder {}
    static class SaleViewHolder extends ViewHolder {
        private TextView price;

        SaleViewHolder(@NonNull View view) {
            price = view.findViewById(R.id.price);
        }
    }
}

# Multiple sections

Mobile Inbox on Android does not provide built-in support for multiple sections.

# Further reading

User guides:

Developer documentation:

Related articles
