Customizing Mobile Inbox on iOS

A mobile inbox provides an app-specific place for users to save in-app messages to read later.

Iterable's iOS SDK includes a default user interface for a mobile inbox, and you can customize it to match your organization's branding and styles, and to display any necessary fields.

This document describes different ways to customize the mobile inbox provided by Iterable's Android SDK.

# In this article

# Setting up the mobile inbox

Before customizing your app's mobile inbox, read Setting up Mobile Inbox on iOS to learn how to set it up and display it.

# Sample app

To better understand how to customize your app's mobile inbox, take a look the code for the Inbox Customization sample project (found in the same GitHub respository as Iterable's iOS SDK).

The sample app relies on mock data and doesn't require any configuration changes in order to run. Modify its data and views to experiment with the various customization options described below.

# Customizing the mobile inbox

This section describes how to customize the user interface of the mobile inbox embedded in your iOS mobile app.

# Empty state

In an empty mobile inbox, you can display custom text (title and body) to help orient your users. These values are blank by default. For example:

To set this text, set the noMessagesTitle and noMessagesBody properties on an instance of IterableInboxNavigationViewController or IterableInboxViewController. For example:

Swift

iterableInboxViewController.noMessagesTitle = "No saved messages"
iterableInboxViewController.noMessagesBody = "Check again later!"

Objective-C

iterableInboxViewController.noMessagesTitle = @"No saved messages"
iterableInboxViewController.noMessagesBody = @"Check again later!"

# Message display style (popup or navigation)

To change the way that the mobile inbox displays messages, set the isPopup property on its view controller:

• true (default) - display messages as popups in the inbox
• false - display messages on the navigation stack

# Navigation title

To change the title of the inbox, set the navTitle property on IterableInboxNavigationViewController. Choose a simple title such as Inbox.

# Cell layout, colors and font

To modify the font, color or layout of inbox table view cells:

1. Copy swift-sdk/Resources/SampleInboxCell.xib from the swift-sdk repository to your project.

2. Rename the file. For example, you might call it CustomInboxCell.xib.

3. In the new file, change the layout, colors and font however you'd like.

4. Tell the mobile inbox view controller to use the custom nib file:

   • If you're using a storyboard, select the IterableInboxNavigationViewController, open its Attributes inspector, and set the Cell Nib Name property to your custom cell name. For example:



   • Otherwise, set the cellNibName property on the mobile inbox view controller to the name of your custom cell. For example:

     let viewController = IterableInboxNavigationViewController()
     viewController.cellNibName = "CustomInboxCell"
     present(viewController, animated: true)


# Date format and visibility

To change the format or visibility of the date field for each message cell, set the dateMapper property on the mobile inbox delegate. This property is a closure that takes an IterableInAppMessage and returns an optional String:

• To hide the date, it should return nil.
• Otherwise, it should return the formatted date.

This example uses a dateMapper provided by Iterable's iOS SDK:

public class MyCustomInboxViewDelegate1: IterableInboxViewControllerViewDelegate {
    public required init() {}
    public let dateMapper = IterableInboxViewController.DefaultDateMapper.localizedShortDateShortTime
}

This example uses a custom dateMapper:

public class MyCustomInboxViewDelegate2: IterableInboxViewControllerViewDelegate {
    public required init() {}
    // shows short date and short time
    public var dateMapper: (IterableInAppMessage) -> String? = { message in
        guard let date = message.createdAt else {
            return nil
        }
        return DateFormatter.localizedString(from: date, dateStyle: .short, timeStyle: .short)
    }
}

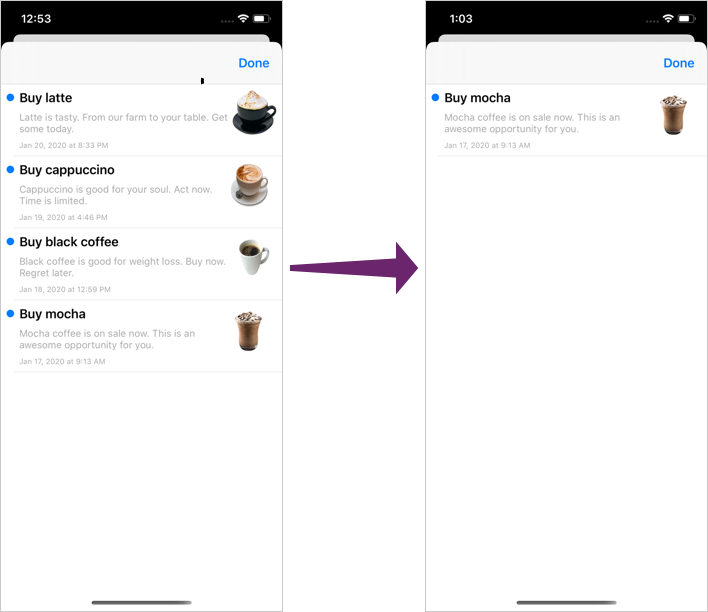

# Filtering messages

To filter which messages are displayed in the mobile inbox, set the filter property on the mobile inbox delegate. This property is a closure that takes an IterableInAppMessage and returns a Bool. Return true if the message should be displayed and false if it should not.

This example uses a filter provided by Iterable's iOS SDK, which filters on the provided message types:

public class MyCustomInboxViewDelegate1: IterableInboxViewControllerViewDelegate {
    public required init() {}
    public let filter = IterableInboxViewController.DefaultFilter.usingCustomPayloadMessageType(in: "marketing", "newsFeed")
}

This example uses a custom filter:

public class MyCustomInboxViewDelegate2: IterableInboxViewControllerViewDelegate {
    public required init() {}
    // Only displays messages where "shouldDisplay" is set to true.
    public let filter: (IterableInAppMessage) -> Bool = { message in
        guard let customPayload = message.customPayload as? [String: Any] else {
            return false
        }
        return customPayload["shouldDisplay"] as? Bool ?? false
    }
}

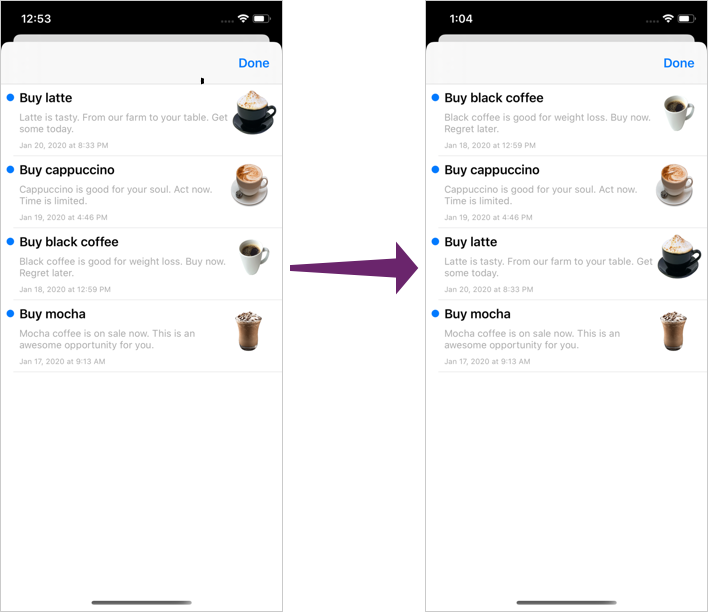

# Sorting messages

By default, Mobile Inbox sorts messages descending by date. However, it is possible to sort the message order in other ways.

To sort the messages in the mobile inbox, set the comparator property on the mobile inbox delegate. This property is a closure that takes two IterableInAppMessage values and returns a Bool—true if the first message should appear before the second message, and false otherwise.

The following example uses a comparator provided by Iterable's iOS SDK, which sorts messages ascending by date:

// Sort by ascending date (instead of default descending)
public class MyCustomInboxViewDelegate1: IterableInboxViewControllerViewDelegate {
    public required init() {}
    public let comparator = IterableInboxViewController.DefaultComparator.ascending
}

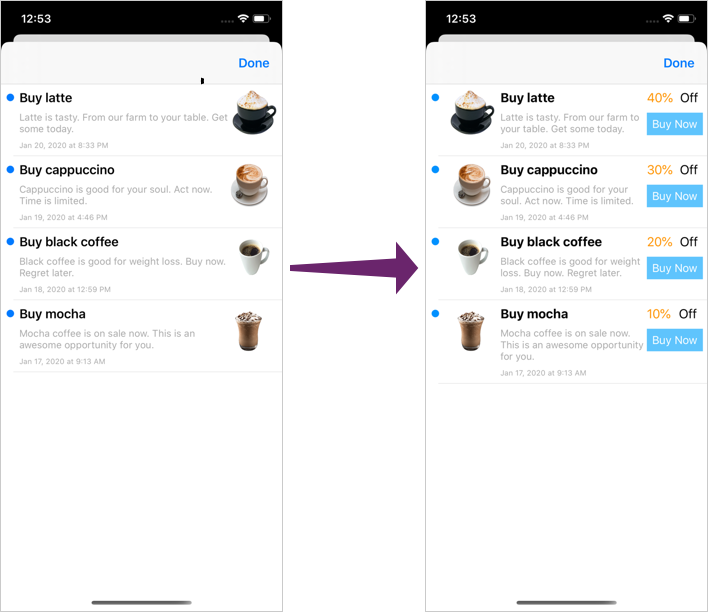

# Adding fields to the inbox cell

To add additional fields to the items displayed in the mobile inbox:

1. Follow the instructions in Cell layout, colors and font to set up a custom table view cell.

2. In Xcode, associate a Swift class with the cell.

3. Open up the new table view cell. Add additional fields and connect them to outlets in the code associated with the cell.

4. In the mobile inbox delegate, implement func renderAdditionalFields(forCell:withMessage:). In this method, set values for the new fields.

For example, this code sets the text on a discountLbl field:

public func renderAdditionalFields(forCell cell: IterableInboxCell, withMessage message: IterableInAppMessage) {
    guard
        let customCell = cell as? AdditionalFieldsInboxCell,
        let payload = message.customPayload as? [String: AnyHashable],
        let discount = payload["discount"] as? String else {
        return
    }
    customCell.discountLbl?.text = "\(discount)"
}

# Multiple cell layouts

To display different inbox items with different interfaces, make two configuration changes to the mobile inbox delegate:

1. Set the customNibNames property to an array of custom cell nib file names (that you've included in your project).

2. Set the customNibNameMapper property. This property is a closure that takes an IterableInAppMessage and returns an optional string:

   • To use the default layout, return nil.
   • To use a custom layout, return the name of the nib file.

For example, the following code sets the customNibNames array and then uses a customNibNameMapper provided by Iterable's iOS SDK, which maps the in-app message to a custom cell name based on a customCellName property in its payload:

public class MultipleCellTypesInboxViewDelegate: IterableInboxViewControllerViewDelegate {
    public required init() {}
    public let customNibNames = ["CustomInboxCell1", "CustomInboxCell2", "AdvancedInboxCell", "CustomInboxCell"]
    public let customNibNameMapper = IterableInboxViewController.DefaultNibNameMapper.usingCustomPayloadNibName
}

# Multiple sections

To separate a mobile inbox into multiple sections, set the messageToSectionMapper property on the mobile inbox delegate. This property takes an IterableInAppMessage and returns an Int that represents the section in which it should appear.

A mobile inbox uses the section numbers returned by a messageToSectionMapper for relative section ordering—not absolute. For example, if a messageToSectionMapper returns sections -1, 1, -1, and 2 for four in-app messages, they will appear in sections 0, 1, 0, and 2 (respectively).

The following code uses a messageToSectionMapper provided by Iterable's iOS SDK, which determines where to display an in-app message by examining the messageSection property in its custom payload.

public class MultipleSectionsViewDelegate: IterableInboxViewControllerViewDelegate {
    public required init() {}
    public let messageToSectionMapper: ((IterableInAppMessage) -> Int) = IterableInboxViewController.DefaultSectionMapper.usingCustomPayloadMessageSection
}

# Creating a custom delegate for the mobile inbox

Use a delegate to customize your mobile inbox in various ways:

• Message filtering
• Message sorting
• Message sections
• Date display
• Custom UI for particular messages
• Additional fields to render

To create a custom delegate:

1. Create a class that implements the IterableInboxViewControllerViewDelegate protocol. For example, you might call it AdvancedInboxViewDelegate.

2. Provide implementations for the parts of the protocol that correspond to the customizations you'd like to make (it isn't necessary to implement the entire protocol).

3. Instantiate and set up the delegate.

   • If you set the inbox view controller in a storyboard:

     Set the view controller's View Delegate Class Name to:

     <YOUR_MODULE_NAME>.<YOUR_CUSTOM_DELEGATE_CLASS_NAME>

     For example, this screenshot sets View Delegate Class Name to inbox_customization.AdvancedInboxViewDelegate:



     IMPORTANT

     Don't forget to include the module in the value for View Delegate Class Name.

   • If you set the inbox view controller in code:

     Set the view controller's viewDelegate property to an instance of the custom delegate. For example, this code sets the delegate to an object of type AdvancedInboxViewDelegate:

     iterableInboxNavController.viewDelegate = AdvancedInboxViewDelegate()
     present(iterableInboxNavController, animated:true)
