Journey Setup: User Update Tiles

User update tiles let you automatically update a user's Iterable profile or subscription preferences in a journey.

There are three types of user update tiles:

• List Membership tiles
• Subscription Preferences tiles
• User Profile tiles

# In this article

# List Membership tiles

List Membership tiles can either add a user to or remove them from one of your static lists. For example, at the end of a welcome sequence, you could add all users who have completed the journey to a list called "Finished Welcome Sequence."

# Setting up a List Membership tile

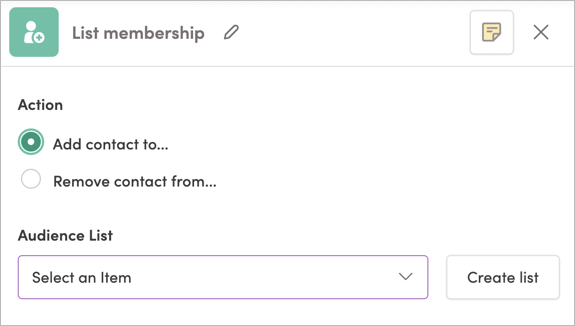

To set up a List Membership tile, first select whether you want users to be added to or removed from a list, then select a list from the dropdown.

# Example use case

You could use this tile to unsubscribe users from a list called "Upcoming Renewals" after they renew their annual subscription.

# Subscription Preferences tiles

Subscription Preferences tiles can either subscribe users to or unsubscribe users from message channels or types.

# Setting up a Subscription Preferences tile

To set up a Subscription Preferences tile, first select whether you want users to be subscribed or unsubscribed at this step, then select which message types and/or channels from the dropdown.

There are four possible configurations for this tile:

To learn more about message channels and types, see Message Channels and Types Overview.

# Example use case

You could use this tile to subscribe users to the "Product Suggestions" message type after they opt in to receive product recommendations from your brand.

# User Profile tiles

User Profile tiles update one or more fields on a user's profile.

# Setting up a User Profile tile

There are two options for updating user profiles with the User Profile tile:

• Use the data below
• Retrieve data from a webhook

Select the Use the data below option to manually enter the JSON for updating user profiles into the code entry box in the tile. For example:

{
    "totalPurchaseValue":"{{numberFormat (math HighestPurchaseValue '-' lastPurchaseValue) 'integer'}}"
}

The code entry box supports Handlebars.

If your journey's entry source is an event, you can use this tile to set user profile fields to values from the event. For example:

{
    "user_profile_field": "{{event_field}}"
}

Select the Retrieve data from a webhook option if you want Iterable to make an HTTP GET request to another system, pass a user's unique identifier (email or userId) as a URL parameter, and update the user's Iterable profile with the requested info.

If you're using the User Profile tile to update a nested object on a user's profile, Iterable can either replace the data that's already in it with the new data, or preserve the existing data while adding to it. Check the box to Merge top-level objects instead of overwriting if you want Iterable to preserve any existing data in a user profile object you're updating. (If you want the data to be overwritten with the new data instead, leave this box unchecked.)

Example:

Let's say you're storing the following information about a user's favorite meal in a nested object called favoriteMeal:

"favoriteMeal": {
   "mainDish": "hamburger",
   "side": "French fries",
   "drink": "orange soda"
}

If you want to know their favorite dessert too, you could set up a User Profile tile that adds this information to the existing favoriteMeal object.

If you've checked the box to Merge top-level objects instead of overwriting, Iterable will keep all of the existing information in the favoriteMeal object and add a new entry for dessert.

So if the User Profile tile makes this update:

"favoriteMeal": {
   "dessert": "ice cream"
}

Then favoriteMeal would look like this:

"favoriteMeal": {
   "mainDish": "hamburger",
   "side": "French fries",
   "drink": "orange soda",
   "dessert": "ice cream"
}

If you don't check the box to Merge top-level objects instead of overwriting, and the User Profile tile runs that same update, the existing fields within the favoriteMeal object would get overwritten, like this:

"favoriteMeal": {
   "dessert": "ice cream"
}

# Example use case

Let's say you've set up a message tile that sends users a survey about their interests. You could set up a Yes/No Split tile that checks to see if users clicked one of the links in the message. Then, you could connect the Yes/No Split tile to a User Profile tile that adds any interests they've clicked to their Iterable profile.
